Sealed Speaker Enclosure Design for Small Speakers (Practical QTC = 0.707 Guide)

If you are searching “what enclosure volume should I use for a small speaker?”, the practical answer is: use a sealed rear volume, target system QTC ≈ 0.707 for a maximally flat response, size for the required net back volume, then add the driver’s displacement volume to get the actual enclosure volume. For passive systems, also plan for baffle-step loss (~6 dB transition) and decide whether to compensate it electrically. This article is adapted from our Speaker Enclosure Design Guide technical whitepaper (by Kevin Hoskins, Jan 2026).

What We Mean by “Good Starting Point”

In the whitepaper, we state that small speakers (especially diaphragm diameters under 120 mm) are generally best used with an enclosed and sealed acoustic volume behind the driver, and we normalize example enclosures to QTC = 0.707 for a maximally flat response. We also note that the examples span 5 W to 20 W continuous power.

Why QTC = 0.707?

Because it is the standard “critically damped” target for a sealed alignment when you want:

• no amplitude peaking,
• smooth high-pass roll-off,
• and a low roll-off inflection frequency.

The Short Design Process (What Actually Matters)

StepActionWhy it matters1Choose a sealed alignment target (QTC ≈ 0.707)Sets damping/flatness target2Determine net sealed back volumeThis is the acoustic volume the driver “sees”3Add speaker displacement volumeConverts net volume to physical enclosure volume4Optionally add damping materialCan reduce physical volume while preserving apparent volume5Check baffle-step behaviorEnclosure geometry changes on-axis response6Add passive BSC if neededFlattens response in passive systems (with trade-offs)

This is the core workflow reflected in the whitepaper and appendix sections.

Example Sealed Volumes at QTC = 0.707 (PUI Audio Data)

Below is a consolidated view using the whitepaper’s example drivers. We combined:

• power ratings (whitepaper Table 1),
• QTC = 0.707 net back volumes / cube-equivalent internal dimensions (whitepaper Table 2),
• displacement volumes (whitepaper Table 3),
• and calculated displacement ratio for design prioritization.

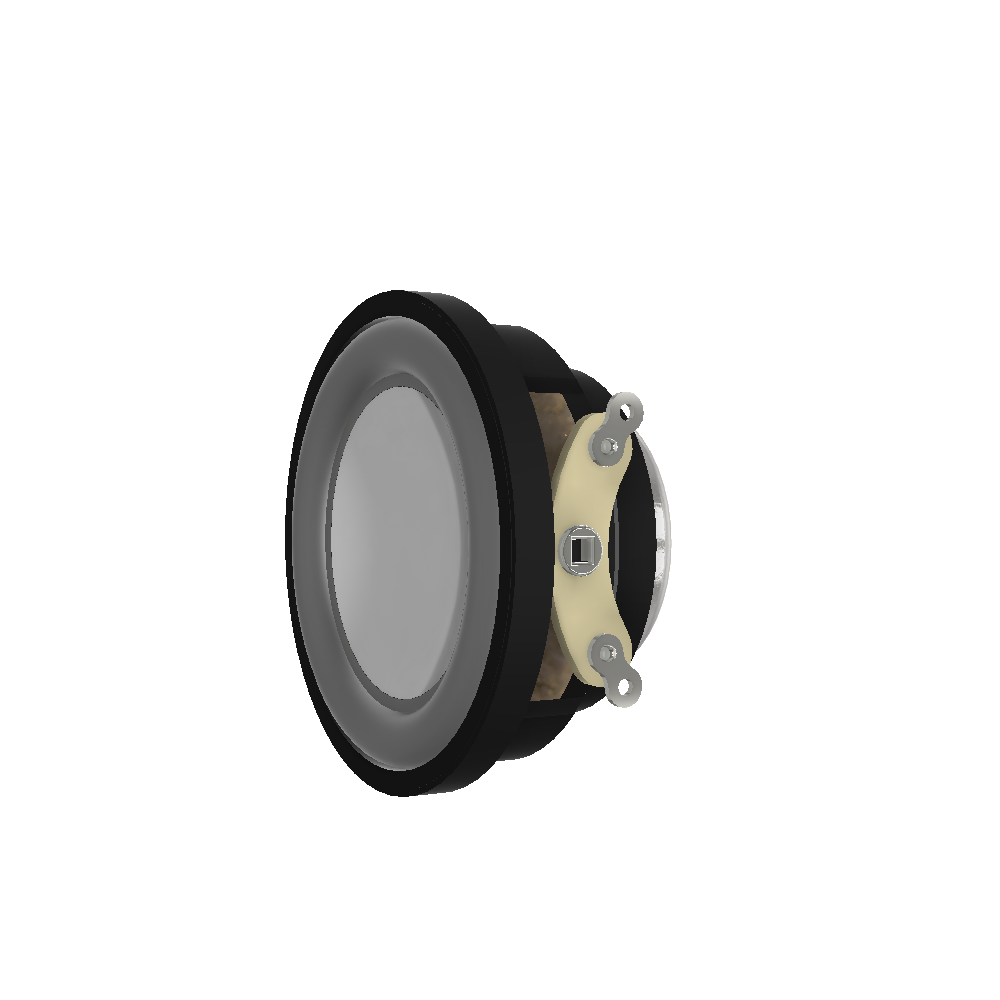

Part NumberCont. Power (W)Net Back Volume @ QTC 0.707 (cc)Example Cube Internal Side (cm)Displacement Volume (cc)Displacement as % of NetGross Volume if Compensated (cc)AS04004MR-N50-R51957.0012.5116.30.8%1973.3AS04008MS-3528.543.065.619.6%34.14AS04504PR-F-WP-R588.904.4625.829.0%114.7AS08304CR-R73912.0015.7668.01.7%3980.0AS04504PS-X-R1073.494.1922.029.9%95.49AS05804PS-X-R10146.05.2736.024.7%182.0AS11508AR-R2017870.026.14114.80.6%17984.8

What the Table Shows (and Why It Is Useful)

The useful point is not “big speaker = big box.” The useful point is this:

• For some compact drivers, displacement volume is a large fraction of net volume.
• In our whitepaper, we explicitly note that compensation becomes especially important when displacement exceeds 10% of net back volume; below that, the return diminishes.

Quick Screening Rule

Use this before doing anything else:

• If displacement >10% of net volume: compensate it.
• If displacement <10%: you may still compensate, but the benefit is smaller.

This is one of the fastest ways to avoid “mystery” response shifts in small sealed designs.

Damping Material: When You Need the Box to Shrink Without Changing the Target

The appendix of our whitepaper covers polyfill and rockwool use in sealed enclosures. The short version: damping can make the enclosure appear acoustically larger by slowing the effective speed of sound in the cavity.

Practical Damping Comparison (from the Appendix)

MaterialTypical UseDensity Range (g/L)Effective Apparent Volume IncreaseNotesPolyester fiberfill (polyfill)Loose stuffing throughout enclosure15–45~10–25%Most effective for increasing apparent volume; keep fluffy/uncompressedRockwool (mineral wool)Wall lining / very light fill6–15~5–10% maxHigher flow resistance; better for absorbing internal mids/highs; contain fibers

Source basis and ranges are from the appendix table and text in the whitepaper appendix.

Design Interpretation

• Use polyfill when the main objective is “same response, smaller box.”
• Use rockwool when the main objective is internal reflection control, with modest apparent-volume gain.

Do not compress polyfill into a dense plug and expect the same result. The appendix specifically calls out keeping it fluffy.

Baffle-Step Loss Is Not Optional Just Because the Box Is Sealed

The appendix also covers baffle-step response and compensation. This matters because enclosure geometry changes the radiation condition:

• low frequency: more 4π radiation behavior,
• high frequency: more 2π forward radiation behavior,
• resulting in an on-axis transition of about 6 dB spread over roughly one decade of frequency.

Baffle-Step Frequency Estimate

The whitepaper gives the transition frequency approximation:

𝑓𝐵𝑆≈𝑐𝜋𝑊fBS​≈πWc​

Where:

• 𝑐≈343 m/sc≈343 m/s
• 𝑊W = effective baffle width (m)

And the transition spans approximately:

0.3𝑓𝐵𝑆≤𝑓≤3𝑓𝐵𝑆0.3fBS​≤f≤3fBS​

This is a broadband geometry effect, not a narrow resonance.

Passive Baffle-Step Compensation (BSC): Simple, Useful, Not Free

For passive systems, the whitepaper describes a common BSC network:

• R and L in series
• placed in parallel (shunt) with the loudspeaker driver.

Component Selection Summary (from the Whitepaper)

ParameterRule of thumb / equationResistor 𝑅RMatch nominal driver DC resistance4 Ω class driver3.9 Ω≤𝑅≤4.7 Ω3.9 Ω≤R≤4.7 Ω8 Ω class driver6.8 Ω≤𝑅≤8.2 Ω6.8 Ω≤R≤8.2 ΩInductor 𝐿L𝐿=𝑅2𝜋𝑓𝐵𝑆L=2πfBS​R​

These values and equations are given in the BSC design section of the whitepaper.

Expected Response Shape (if sized correctly)

The whitepaper describes a properly designed passive BSC network as producing:

• little attenuation below ~0.3𝑓𝐵𝑆0.3fBS​,
• gradual attenuation through the transition,
• and ~6 dB attenuation above ~3𝑓𝐵𝑆3fBS​.

Trade-Offs (also in the whitepaper)

Passive BSC is clean and simple, but not free:

• lower wideband sensitivity,
• resistor power dissipation,
• sensitivity to driver impedance variation.

Practical Engineering Notes (What Usually Causes Rework)

1) Net Volume vs. Physical Volume

Do not mix them. The whitepaper’s enclosure targets are net sealed back volumes. You must add intrusions (driver rear structure, bosses, ribs, etc.) to reach the physical enclosure volume.

2) “Cube Dimensions” Are Only Example Geometry

The whitepaper’s equal-axis dimensions are explicitly examples to hit the cubic volume target. You can change X/Y/Z proportions if the final internal volume is preserved.

3) Small Cavities Punish Sloppy Volume Accounting

In very small sealed volumes, a few cubic centimeters is not noise. It is a design change.

Bottom Line

For small loudspeaker enclosure design, the correct baseline is boring and effective:

1. Seal the rear volume.
2. Target QTC = 0.707 unless you have a specific reason not to.
3. Size to net volume, then add displacement to get gross volume.
4. Use damping material deliberately (not randomly).
5. Account for baffle-step if the system is passive and you care about on-axis tonal balance.

That is the shortest path from “it makes sound” to “it measures like the design intent,” and it is the exact design logic behind our Speaker Enclosure Design Guide.
